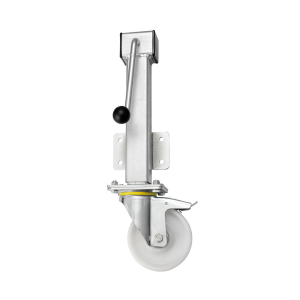

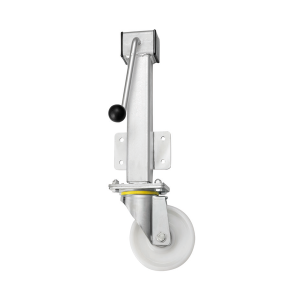

Heavy Duty Jacking Castor with Swivel Nylon 125mm Wheel RH Series 200mm Lift


This heavy duty jacking castor with a heavy duty 125mm nylon wheel can lift loads an additional 200mm in vertical height. These ingenious jacking castors have a side ... Read More

In Stock
£161.41 (excl. VAT) Incl. VAT: £193.69
1+ £161.41 (excl. VAT) £193.69 7 £153.34 (excl. VAT) £184.01

With this product, you earn 194 loyalty point(s). 194 points = £9.70.


This heavy duty jacking castor with a heavy duty 125mm nylon wheel can lift loads an additional 200mm in vertical height. These ingenious jacking castors have a side mounted plate for attachment and a crank handle for ease of lifting movement.

Technical Details

Bearing Type Bearing Type Roller
Bolt Hole Size (mm) Bolt Hole Size (mm) 10
Colour Colour No
Jacking Unit Extension Height Max 200m 774
Jacking Unit Height From Plate Lower Bolt Hole 339
Load Capacity (kg) Load Capacity (kg) 600
Max Load Capacity for 2 Jacking Castors 600
Min Jacking Unit Extension Height 574
Operating Method Handle
Plate Dimension Length (mm) Plate Dimension Length (mm) 150
Plate Dimension Width (mm) Plate Dimension Width (mm) 100
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 110
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 60
Plate Hole Diameter Plate Hole Diameter 11
Product Type Product Type Jacking Castors
Swivel Radius Swivel Radius 108
Thread Material Thread Material No
Total Castor Height Total Castor Height 164 + 200
Total Height to Plate Lower Bolt Hole 235
Tread Width (mm) Tread Width (mm) 45
Wheel Centre Wheel Centre White Polyamide
Wheel Colour Wheel Colour White
Wheel Diameter(mm) Wheel Diameter(mm) 125
Wheel Material Wheel Material Nylon
