Footmaster Levelling Castor with Plate Fitting 125kg Load Capacity 50mmFootmaster Levelling Castor with Plate Fitting 125kg Load Capacity 50mm
Move your mouse over image or click to enlarge
  • Image

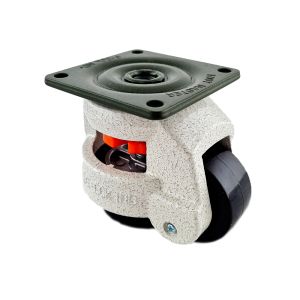

Footmaster Levelling Castor with Plate Fitting 125kg Load Capacity 50mm


611-4420 RS compatible Medium Duty foot master levelling castors are unique in their function allowing movement on a swivel castor and positioning on an anti vibration... Read More

In Stock
£28.50 (excl. VAT) Incl. VAT: £34.20
1+ £28.50 (excl. VAT) £34.20 7 £27.08 (excl. VAT) £32.50 12 £25.65 (excl. VAT) £30.78

With this product, you earn 35 loyalty point(s). 35 points = £1.75.


611-4420 RS compatible Medium Duty foot master levelling castors are unique in their function allowing movement on a swivel castor and positioning on an anti vibration rubber pad by a handwheel adjustment. With a die cast aluminium body these sturdy multi functional castors can take a load of 250kg when stationery on the rubber pad and 125kg when moving on the castor wheel. Attachment to machinery and equipment is by a forged steel top plate allowing lift from 82mm to 92mm

Technical Details

Castor Length (mm) Castor Length (mm) 100
Castor Width (mm) Castor Width (mm) 70
Colour Colour No
Load Capacity (kg) Load Capacity (kg) 125
Load Capacity Dynamic (kg) Load Capacity Dynamic (kg) 125
Load Capacity Static (kg) Load Capacity Static (kg) 250
Max Load Capacity for 2 Jacking Castors 250
Operating Method Handwheel
Plate Dimension Length (mm) Plate Dimension Length (mm) 73
Plate Dimension Width (mm) Plate Dimension Width (mm) 73
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 58
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 58
Plate Hole Diameter Plate Hole Diameter 6.5
Product Type Product Type Footmaster Castors
Thread Material Thread Material No
Total Castor Height Total Castor Height 82 + 10
Wheel Centre Wheel Centre Polyamide
Wheel Colour Wheel Colour Black
Wheel Diameter(mm) Wheel Diameter(mm) 50
Wheel Material Wheel Material Nylon

Delivery & Returns


Delivery Charges - Average delivery £4.50


We have teamed up with FedEx and DPD Interlink to deliver our products nationally and worldwide. Our trackable consignments, and signed for service ensures the order gets to you in the required time, hassle free.

As our products can be bulky we have a variety of delivery charges based upon the weight of your overall order. You will be shown delivery options at the checkout. For a more detailed view of our delivery charges please visit our Delivery and Returns page

You can order online quickly and easily for both UK and EU destination, and your delivery charge will be shown to you at checkout. If your order exceeds our weight for online orders you will be asked to contact us directly to get a pallet delivery quote.


ServiceWeight - (kg's)Cost £'s

Collection In Person



Sack Trucks Trolleys and Steps



2 Day - Express Pack Light

Up to 1kg


2 Day Express Pack Medium

Up to 4kg


Next Working Day Service

Up to 25kg


2 Day - Standard Service

4kg to 25kg


Next Day - Pre 12pm

Up to 25kg


Next Day - Pre 10.30am

Up to 25kg


Saturday - Delivery  Service

Up to 25kg


Highlands and Islands

Up to 25kg

From £13.00 - £40.00

Northern & Southern Ireland

Up to 50kg

£13.00 - £39.00

Inside EU

Up to 60kg

From €14 - €68

Outside EU

Up to 60kg

Contact us for a Quote



Returns and Refunds

We have a no quibble returns and refund policy. You have 30 days to return any item for a full refund or exchange, provided it is in its original, unused, saleable condition and repackaged in original packaging.

To return goods simply download this Returns form

Returns charges are not covered by the Company, unless the goods are faulty. If the goods are faulty please call our Customer Services on 0116 2764987 or 00 44 116 2764987

For Returns of Sack Trucks, Trolleys and Mobile Steps please refer to our detailed Terms and Conditions


Got a Question to Ask?

Use this form to submit your question. Question will be displayed after moderation

Question Written by: Janet McBride . October 13th 2017
How does the footmaster actually work and is it suitable for a laboratory bench?
Answer Written by: Ross Handling
This is an all in one device, combining a rubber wheel with an ant vibration heavy duty foot. This levelling castor can attach to tables, benches and equipment, raise the foot and the wheel takes over! Move to your desired location, lower the foot which raises the wheel off the ground and secures you into position. Yes its ideal for a laboratory bench, especially if it needs to move around! We have different fitting options to attach to your equipment and different adjustment mechanisms. If you know the approximate weight of your bench plus equipment on top that is also useful as we have 5 options of foot master castors that take from 25kg each up to 375kg each!
Was this answer helpful?

Measuring Advice

We have a range of quick reference guides on how to measure and choose the correct product.  Take a look at our Measuring guide page for more information and advice.

Alternatively if you would like to speak to our friendly team, please do call us on 0116 2764987
