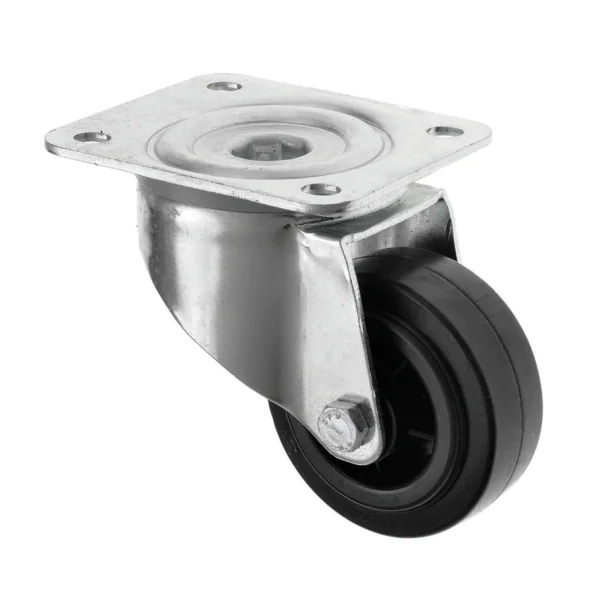

100mm Black Rubber Swivel Castor Wheel
SKU
100-3360-PVR
This 100 mm swivel castor with black rubber wheel is designed for smooth manoeuvrability, dependable load handling and quieter operation in... Read Full Description
In stock
£12.97
£10.81
- Price
- 1 + £12.97 £10.81
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel castor with black rubber wheel is designed for smooth manoeuvrability, dependable load handling and quieter operation in commercial and light industrial applications. The swivel head allows easy directional changes, making it ideal for trolleys, mobile equipment and handling units that require controlled movement without braking.
With a load capacity of 150 kg per castor, this model is suitable for medium-duty use. The roller bearing construction delivers smooth rolling under load, helping reduce resistance and wear during regular operation. A maximum combined load capacity of 240 kg across four castors makes it a practical choice for smaller platforms and equipment.
The rubber on polypropylene wheel offers excellent shock absorption, reduced rolling noise and good floor protection. Featuring a tread hardness of A85 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial environments. The 100 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 128 mm total castor height maintains stability without significantly increasing overall equipment height. A secure top plate fixing ensures straightforward installation.
Key Features
-
Swivel castor – Smooth manoeuvrability and easy directional control
-
Top plate fixing – Stable and secure mounting
-
100 mm wheel diameter – Improved rolling performance and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Tread Hardness: A85
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 91 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile equipment and fixtures
-
Handling carts and bins
-
Material handling applications
-
Indoor environments requiring quiet, controlled movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial environments.
This 100 mm swivel castor with black rubber wheel delivers smooth rolling, reliable load support and quieter operation, making it a practical solution for a wide range of movement needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
100-3360-PVR_1.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
A85 |
|
|
240 |
|
|
105 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
91 |
|
|
128 |
|
|
Black |
|
|
100 |
|
|
Rubber on Polypropylene |
