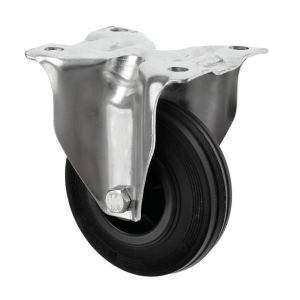

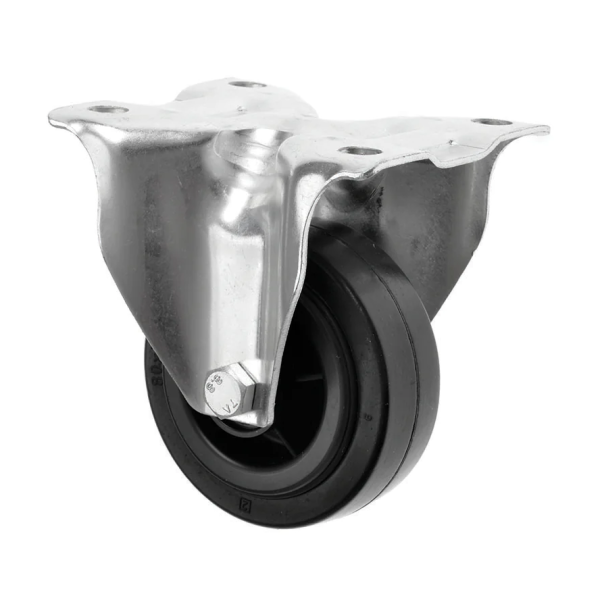

100mm Fixed Castor Black Rubber Wheel
SKU
100-3368-PVR
This 100 mm fixed castor with black rubber wheel is designed for straight-line movement and reliable load support in a wide range of light- to... Read Full Description
In stock
£10.66
£8.88
- Price
- 1 + £10.66 £8.88
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm fixed castor with black rubber wheel is designed for straight-line movement and reliable load support in a wide range of light- to medium-duty industrial and commercial applications. The fixed housing ensures controlled linear travel, making it ideal for trolleys, mobile workstations and handling units where stability and durability are key.
With a load capacity of 150 kg per castor, this model delivers dependable performance under daily use. The roller bearing construction ensures smooth rolling under load while helping reduce friction and wear during regular movement. With a maximum combined load capacity of 240 kg across four castors, it provides steady support for larger platforms and equipment.
The rubber on polypropylene wheel offers quiet operation, effective shock absorption and excellent floor protection. With a tread hardness of A85 and an operating temperature range of –20°C to +80°C, this castor performs reliably in indoor and light industrial settings. The 100 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 128 mm total castor height contributes to stable performance without overly increasing overall equipment height. A secure top plate fixing ensures straightforward installation and lasting reliability.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Sturdy and secure mounting
-
100 mm wheel diameter – Improved rolling efficiency and clearance
-
150 kg load capacity per castor – Suitable for light to medium duty use
-
Black rubber wheel – Quiet operation and effective floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Tread Hardness: A85
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 128 mm
-
Plate Length: 101 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and storage units
-
Handling carts and equipment benches
-
Light material handling applications
-
Indoor environments requiring smooth, controlled movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial use.
This 100 mm fixed castor with black rubber wheel delivers smooth rolling performance, reliable load support and stable linear movement, making it a practical and cost-effective solution for many mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
100-3368-PVR_1.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
A85 |
|
|
240 |
|
|
101 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
128 |
|
|
Black |
|
|
100 |
|
|
Rubber on Polypropylene |
