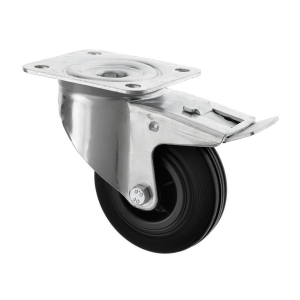

100mm Swivel Braked Castor Black Rubber Wheel
SKU
100-3360-PVR/SWB
This 100 mm swivel braked castor with black rubber wheel is designed for applications requiring smooth manoeuvrability combined with positive... Read Full Description
In stock
£16.27
£13.56
- Price
- 1 + £16.27 £13.56
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel braked castor with black rubber wheel is designed for applications requiring smooth manoeuvrability combined with positive locking when stationary. The swivel head allows easy directional changes, while the integrated brake locks the wheel and swivel action to keep equipment securely in position when not in motion.
With a load capacity of 150 kg per castor, this model is suitable for light- to medium-duty industrial and commercial applications. The roller bearing ensures smooth rolling performance under load and helps reduce friction and wear during everyday use. It also has both a dynamic and static load capacity of 80 kg, providing reliable performance whether in motion or at rest. The maximum combined load capacity of 240 kg across four castors makes it suitable for smaller working platforms and lightweight equipment.
The rubber on polypropylene wheel offers quiet operation, effective vibration absorption and good floor protection. With an operating temperature range of –20°C to +80°C, this castor performs reliably across a variety of indoor environments. The larger 100 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 128 mm total castor height maintains stability without significantly increasing overall equipment height. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Smooth manoeuvrability with secure locking
-
Top plate fixing – Strong and stable mounting
-
100 mm wheel diameter – Improved rolling performance and obstacle clearance
-
150 kg load capacity per castor – Suitable for light to medium duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Dynamic Load Capacity: 80 kg
-
Static Load Capacity: 80 kg
-
Max Load Capacity of 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 118 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light-duty industrial and retail trolleys
-
Mobile furniture and display units
-
Small workstations and equipment
-
Handling carts and bins
-
Indoor environments where secure braking and quiet operation are needed
Why Choose Ross Handling
Ross Handling supplies a range of castors and wheels selected for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial applications.
This 100 mm swivel braked castor with black rubber wheel offers smooth rolling, reliable braking and quiet performance, making it a practical choice for light- to medium-duty applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
100-3360-PVR-SWB_1.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
80 |
|
|
80 |
|
|
240 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
118 |
|
|
128 |
|
|
100 |
|
|
Rubber on Polypropylene |
