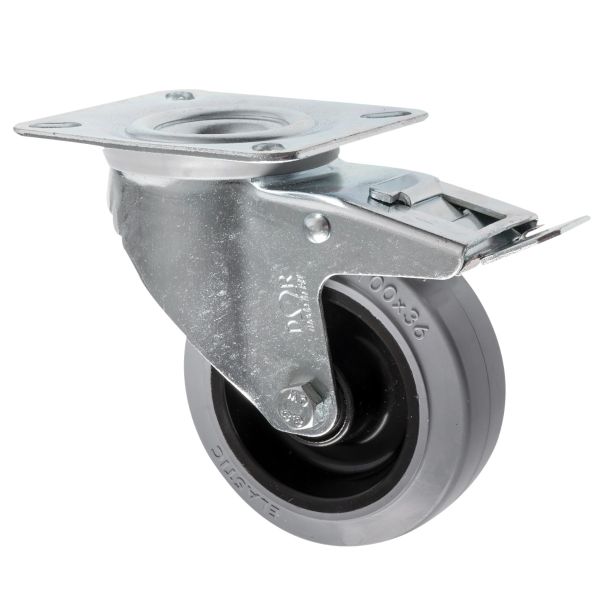

100mm Swivel Braked Castor Grey Rubber Wheel
SKU
100-3360-GVR/SWB
This 100 mm swivel braked castor with grey rubber wheel is designed for applications that require smooth manoeuvrability combined with secure... Read Full Description
In stock
£19.76
£16.47
- Price
- 1 + £19.76 £16.47
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel braked castor with grey rubber wheel is designed for applications that require smooth manoeuvrability combined with secure locking when stationary. The swivel head allows easy directional changes, while the foot-operated brake locks the wheel and swivel action to keep equipment firmly in position when required.
With a load capacity of 150 kg per castor, this model is well suited to medium-duty industrial and commercial applications. The roller bearing construction ensures smooth rolling under load, helping to reduce rolling resistance and wear during regular use. The castor also offers a dynamic load capacity of 160 kg and a static load capacity of 320 kg, providing reliable performance in both mobile and stationary conditions.
The rubber on polypropylene wheel delivers quiet operation, effective vibration absorption and good floor protection. With an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial environments. The larger 100 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 128 mm total castor height maintains stability without excessively increasing overall equipment height. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Mobility with secure locking
-
Top plate fixing – Strong and stable mounting
-
100 mm wheel diameter – Improved rolling performance and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Dynamic Load Capacity: 160 kg
-
Static Load Capacity: 320 kg
-
Max Load Capacity of 4 Castors: 960 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 118 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and equipment
-
Storage carts and handling units
-
Light to medium-duty material handling
-
Indoor environments requiring controlled movement and braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 100 mm swivel braked castor with grey rubber wheel offers smooth rolling, reliable braking and strong load performance, making it a dependable solution for controlled mobility in industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
100-3360-GVR-SWB_1.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
160 |
|
|
320 |
|
|
960 |
|
|
105 |
|
|
85 |
|
|
118 |
|
|
128 |
|
|
100 |
|
|
Rubber on Polypropylene |
