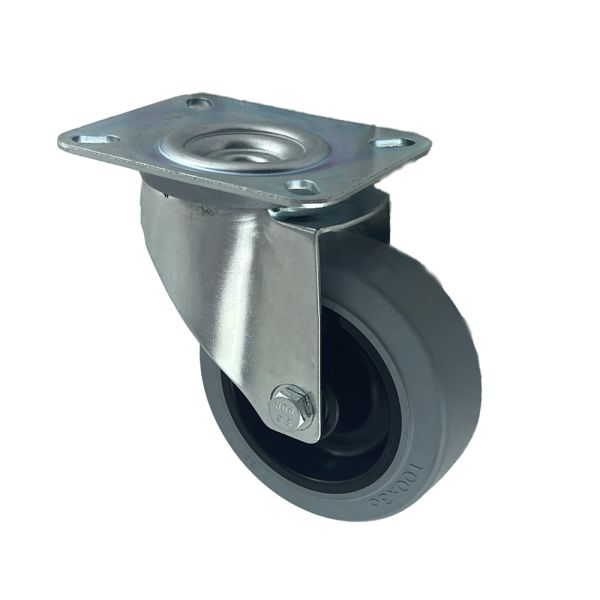

100mm Swivel Castors Grey Rubber Wheel
SKU
100-3360-GVR
This 100 mm swivel castor with grey rubber wheel is designed for applications requiring smooth manoeuvrability and reliable load handling without... Read Full Description
In stock
£16.33
£13.61
- Price
- 1 + £16.33 £13.61
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel castor with grey rubber wheel is designed for applications requiring smooth manoeuvrability and reliable load handling without braking. The swivel head allows easy directional changes, making it ideal for trolleys, mobile equipment and handling units where controlled movement is required.
With a load capacity of 150 kg per castor, this model is well suited to medium-duty industrial and commercial environments. The roller bearing construction ensures smooth rolling under load while reducing rolling resistance and wear during regular use. The castor also offers a dynamic load capacity of 160 kg and a static load capacity of 320 kg, providing dependable performance in both moving and stationary conditions.
The rubber on polypropylene wheel delivers excellent shock absorption, quiet operation and effective floor protection. With a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial environments. The 100 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 128 mm total castor height maintains stability without significantly increasing overall equipment height. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor – Smooth manoeuvrability and easy directional control
-
Top plate fixing – Strong and secure mounting
-
100 mm wheel diameter – Improved rolling performance and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Dynamic Load Capacity: 160 kg
-
Static Load Capacity: 320 kg
-
Max Load Capacity of 4 Castors: 960 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 91 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and equipment
-
Handling carts and storage units
-
Medium-duty material handling
-
Indoor environments requiring smooth, controlled movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial applications.
This 100 mm swivel castor with grey rubber wheel offers smooth rolling performance, strong load handling and excellent manoeuvrability, making it a reliable solution for a wide range of industrial mobility applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
100-3360-GVR_3.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
160 |
|
|
320 |
|
|
960 |
|
|
105 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
91 |
|
|
128 |
|
|
Grey |
|
|
100 |
|
|
Rubber on Polypropylene |
