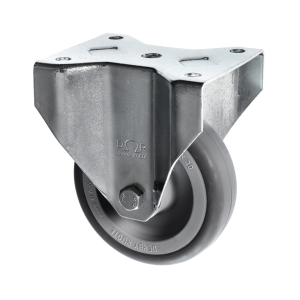

100mm Thermoplastic Rubber Wheel Fixed Castors
SKU
100-3368-MGR
This 100 mm fixed castor with thermoplastic rubber wheel is designed for applications that require stable, straight-line movement with dependable load support. The fixed housing provides... Read Full Description
In stock
£7.86
£6.55
- Price
- 1 + £7.86 £6.55
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm fixed castor with thermoplastic rubber wheel is designed for applications that require stable, straight-line movement with dependable load support. The fixed housing provides consistent directional tracking, making it ideal for trolleys, mobile equipment, workstations and handling units where swivelling is not required.
With a load capacity of 100 kg per castor, this model is well suited to light-duty and medium-duty industrial and commercial environments. The roller bearing construction ensures smooth, low-resistance rolling under load, helping to reduce pushing effort while minimising wear during regular use. When used as a set of four castors, the maximum combined load capacity is 300 kg.
The thermoplastic rubber wheel delivers quiet, floor-friendly performance with effective shock absorption and a non-marking tread. Featuring a tread hardness of 88 Shore A and an operating temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor applications. The 100 mm wheel diameter improves rolling efficiency and obstacle clearance compared to smaller sizes, while the 128 mm total castor height maintains stability without significantly increasing overall equipment height. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – straight-line movement with stable tracking
-
Top plate fixing – secure and rigid mounting
-
100 mm wheel diameter – improved rolling performance and obstacle clearance
-
100 kg load capacity per castor – suitable for light to medium duty use
-
Grey thermoplastic rubber wheel – quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – durable and shock absorbing
-
Roller bearing – smooth rolling under load
-
Operating temperature range: –20 °C to +60 °C
Specifications
Castor Type: Fixed, Top Plate
Bearing Type: Roller
Load Capacity: 100 kg
Max Load Capacity of 4 Castors: 300 kg
Wheel Diameter: 100 mm
Tread Width: 30 mm
Wheel Material: Rubber on Polypropylene
Wheel Colour: Grey
Tread Hardness: 88 Shore A
Temperature Range: –20 °C to +60 °C
Total Castor Height: 128 mm
Plate Length: 105 mm
Plate Width: 85 mm
Plate Hole Centres (Length): 80 mm
Plate Hole Centres (Width): 60 mm
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light to medium-duty trolleys
-
Mobile workstations and benches
-
Handling equipment and carts
-
Storage units and racks
-
Indoor environments requiring straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, reliability and consistent performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 100 mm fixed castor with thermoplastic rubber wheel offers smooth rolling performance, quiet operation and dependable load capacity, making it a practical solution for controlled, straight-line mobility.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 |
|
|
TSZ7 MGR 100/30 P2 FA |
|
|
100-3368-MGR.pdf |
|
|
30 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
300 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
128 |
|
|
Grey |
|
|
100 |
|
|
Rubber on Polypropylene |
