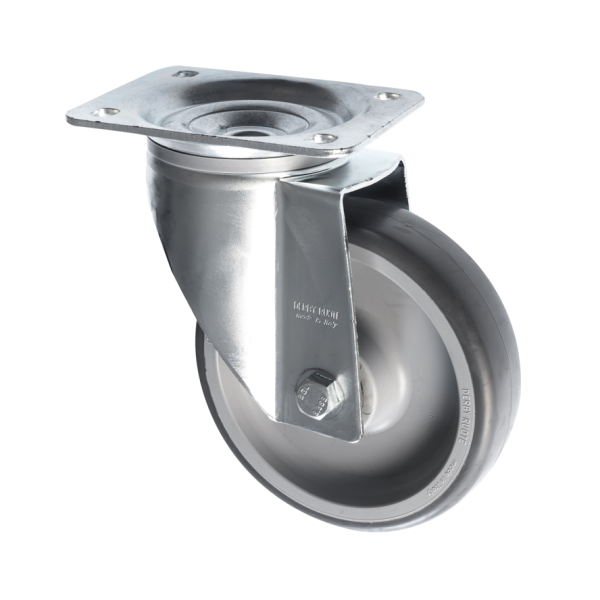

100mm Thermoplastic Rubber Castors
SKU
100-3360-MGR
This 100 mm swivel castor with thermoplastic rubber wheel delivers smooth manoeuvrability and dependable load performance for light- to... Read Full Description
In stock
£9.29
£7.74
- Price
- 1 + £9.29 £7.74
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel castor with thermoplastic rubber wheel delivers smooth manoeuvrability and dependable load performance for light- to medium-duty applications. The swivel action allows easy directional changes, making it ideal for trolleys, handling carts, mobile workstations and workshop equipment where quiet and reliable movement is required without braking.
With a load capacity of 100 kg per castor, this model provides dependable performance for commercial and light industrial use. The roller bearing ensures smooth, low-resistance rolling under load and helps reduce wear during frequent use. With a maximum combined load capacity of 300 kg across four castors, it supports compact platforms and modest equipment with confidence.
The thermoplastic rubber wheel provides quiet operation, excellent shock absorption and non-marking floor protection, making it suitable for environments where noise minimisation and surface care are priorities. With a tread hardness of 88 Shore A and an operating temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor conditions. The 100 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 128 mm total castor height balances stability with a low overall profile. A secure top plate fixing ensures quick and robust installation.
Key Features
-
Swivel castor (non-braked) – Smooth manoeuvrability and easy directional control
-
Top plate fixing – Strong, stable mounting
-
100 mm wheel diameter – Balanced rolling performance and clearance
-
100 kg load capacity per castor – Suitable for light to medium duty use
-
Grey thermoplastic rubber wheel – Quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20 °C to +60 °C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 100 kg per castor
-
Max Load Capacity of 4 Castors: 300 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 128 mm
-
Swivel Radius: 90 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light-duty industrial and workshop trolleys
-
Mobile workstations and benches
-
Handling carts and storage platforms
-
Retail displays and office furniture applications
-
Indoor environments where smooth, quiet movement is essential
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial environments.
This 100 mm swivel castor with thermoplastic rubber wheel offers reliable performance, quiet operation and versatile application — making it a practical solution for everyday mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 |
|
|
TSZ7 MGR 100/30 P2 |
|
|
100-3360-MGR.pdf |
|
|
30 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
300 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
90 |
|
|
128 |
|
|
Grey |
|
|
100 |
|
|
Rubber on Polypropylene |
