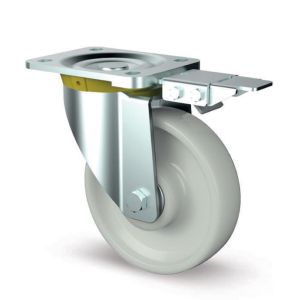

125mm Heavy Duty Castors with Directional Lock Nylon Wheel
SKU
125-5000-NYB/D
This 125 mm heavy-duty castor with directional lock and nylon wheel is built for industrial environments where control, stability and load capacity are essential. The directional lock allows the... Read Full Description
In stock
£69.53
£57.94
- Price
- 1 + £69.53 £57.94
CAD Request
Frequently bought together
Description
This 125 mm heavy-duty castor with directional lock and nylon wheel is built for industrial environments where control, stability and load capacity are essential. The directional lock allows the operator to convert the swivel castor into a fixed direction when needed — ideal for guiding trolleys down aisles or moving heavy loads in a straight line.
Featuring a strong fabricated steel housing, sealed bearings and a durable nylon wheel, this castor offers smooth, low-resistance rolling and excellent load support. It is suitable for heavy-duty warehouse, workshop and manufacturing applications.
Key Features
-
125 mm nylon wheel for heavy-duty industrial use
-
Directional lock for controlled, straight-line travel
-
Fabricated steel housing for maximum strength
-
Sealed bearing swivel head for smooth rotation
-
700 kg load capacity per castor
-
50 mm wide nylon tread for durability and low rolling resistance
-
Ideal for trolleys, racks, industrial carts and warehouse equipment
Specifications
-
Wheel Diameter: 125 mm
-
Tyre Material: Nylon
-
Tread Width: 50 mm
-
Load Capacity: 700 kg per castor
-
Castor Type: Heavy-duty swivel with directional lock
-
Housing Material: Fabricated steel
-
Bearing Type: Sealed swivel bearing + ball bearing wheel hub
-
Top Plate Size: 135 mm × 110 mm
-
Bolt Hole Centres: 105 mm × 80 mm
-
Bolt Hole Diameter: 10 mm
-
Lock Type: Directional lock (locks swivel for straight travel)
-
Wheel Colour: Natural nylon
Applications
-
Warehouse trolleys and storage units
-
Industrial transport carts
-
Heavy-duty workshop equipment
-
Aisle-running trolleys requiring directional control
-
Handling equipment operating under high loads
Why Choose Ross Handling
At Ross Handling, we select heavy-duty castors engineered for strength, stability and long service life. This 125 mm nylon directional-lock castor offers reliable straight-line control, high load capacity and durable materials — giving you dependable performance for demanding industrial environments.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
125-5000-NYB-D.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
148 |
|
|
164 |
|
|
White |
|
|
125 |
|
|
Nylon |
