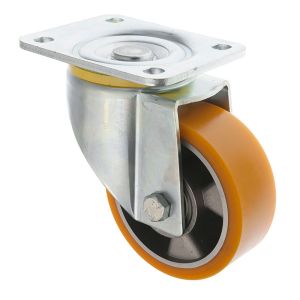

125mm Heavy Duty Directional Lock Castors with Polyurethane Wheel
SKU
125-5000-PAL/D
This 125 mm heavy-duty swivel castor with directional lock is engineered for industrial... Read Full Description
In Stock
£67.42
£56.18
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with directional lock is engineered for industrial applications where high load support, controlled manoeuvrability and straight-line tracking are required. The directional lock lets you lock the swivel action, allowing equipment to move straight over longer runs or through narrow aisles without uncontrolled turning, while still offering free swivel when unlocked.
With a load capacity of 500 kg per castor, this model is suitable for industrial trolleys, machinery bases, material-handling platforms and workshop carts operating under substantial loads. The ball journal swivel bearing provides smooth, reliable rotation under load, contributing to dependable performance and long service life in demanding environments.
The polyurethane on aluminium wheel combines a lightweight aluminium core with a high-performance polyurethane tread, offering excellent load support, reduced vibration and floor protection. The 50 mm tread width and 92 Shore A hardness deliver a robust running surface that balances durability, grip and quieter rolling. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs consistently in a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and efficient load distribution for heavy-duty installations requiring directional control.
Key Features
-
Heavy-duty swivel castor with directional lock – Switch between free swivel and straight tracking
-
500 kg load capacity per castor – Strong support for demanding use
-
Polyurethane on aluminium wheel – Durable, floor-friendly tread with high load support
-
125 mm wheel diameter – Smooth rolling under load
-
50 mm tread width – Excellent stability and ground contact
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 500 kg per castor
-
Max Load Capacity of 4 Castors: 1500 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 148 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and workshop platforms
-
Material handling systems and warehouse units
-
Manufacturing and assembly equipment
-
Applications requiring straight tracking with load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel castor with directional lock and polyurethane on aluminium wheel delivers excellent load capacity, controlled manoeuvrability and reliable directional tracking, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
500 |
|
|
125-5000-PAL-D.pdf |
|
|
50 |
|
|
-20 min to +60 max |
|
|
92 shore A |
|
|
1500 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
148 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Aluminium |
