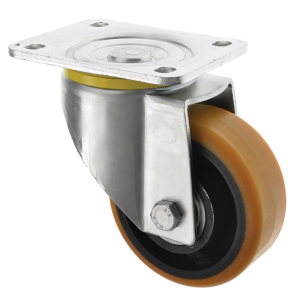

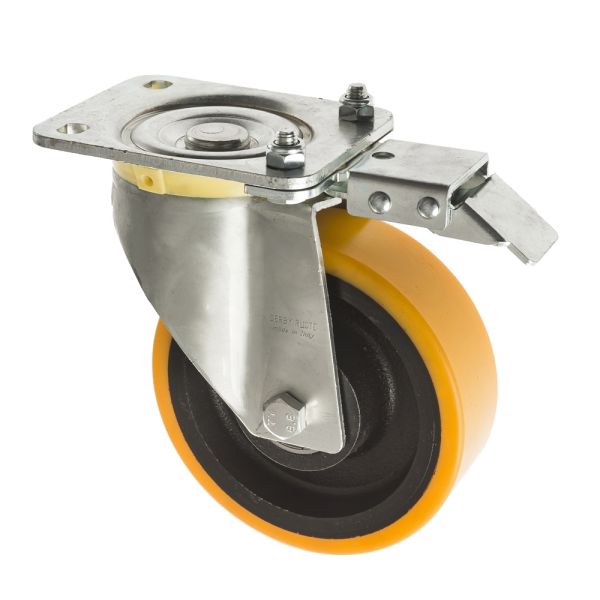

125mm Heavy Duty Castors with Directional Lock Polyurethane Wheel
SKU
125-5000-SUB/D
This 125 mm heavy-duty swivel castor with directional lock is designed for industrial... Read Full Description
In stock
£82.18
£68.48
- Price
- 1 + £82.18 £68.48
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with directional lock is designed for industrial applications where high load capacity, controlled manoeuvrability and the ability to track straight when needed are required. The directional lock allows the swivel action to be locked, enabling consistent straight-ahead movement — ideal for long runs or confined aisles.
With a load capacity of 550 kg per castor, this model is well suited to industrial trolleys, heavy machinery frames, material handling platforms and production equipment operating under substantial weight. The ball journal swivel bearing ensures smooth, dependable rotation under load, supporting reliable performance and extended service life in demanding environments.
The polyurethane on cast iron wheel combines a robust cast iron core with a high-performance polyurethane tread, offering excellent load support, high abrasion resistance and smooth rolling characteristics. The 50 mm tread width and 92 Shore A hardness deliver a tough, resilient running surface that balances durability, floor protection and load distribution. Designed for use within a temperature range of –40 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial applications.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor a dependable choice for heavy-duty operations where both tracking control and heavy load support are required.
Key Features
-
Heavy-duty swivel castor with directional lock – Toggle between swivel movement and straight tracking
-
550 kg load capacity per castor – Strong industrial performance
-
Polyurethane on cast iron wheel – Durable, abrasion-resistant tread
-
125 mm wheel diameter – Efficient rolling under load
-
50 mm tread width – Excellent stability and floor contact
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –40 °C to +60 °C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 550 kg per castor
-
Max Load Capacity of 4 Castors: 1650 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Cast Iron
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +60 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 148 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling systems
-
Applications requiring both load support and controlled tracking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and reliable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel castor with directional lock and polyurethane on cast iron wheel delivers excellent load capacity, controlled movement and flexible tracking control, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
550 |
|
|
125-5000-SUB-D.pdf |
|
|
50 |
|
|
-40 min to +60 max |
|
|
92 shore A |
|
|
1650 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
148 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Cast Iron |
