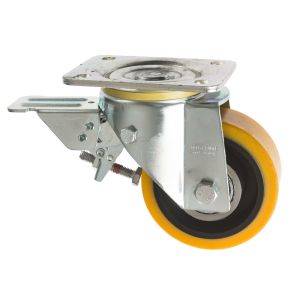

125mm Heavy Duty Castors with Leading Brake Polyurethane Wheel
SKU
125-5000-SUB/FR
This 125 mm heavy-duty swivel castor with leading brake combines high load capacity,
In Stock
£80.15
£66.79
- Price
- 1 + £80.15 £66.79
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with leading brake combines high load capacity, controlled manoeuvrability and enhanced braking performance for demanding industrial applications. The leading brake mechanism engages when the wheel is rolling forward, helping to moderate movement and stabilise heavy loads during transport — ideal for handling on slight gradients or in busy production areas.
With a load capacity of 550 kg per castor, this model is well suited to industrial trolleys, machinery bases, material-handling platforms and production equipment that require robust mobility and reliable braking under load. The ball journal swivel bearing ensures smooth, dependable rotation, providing long service life in tough working environments.
The polyurethane on cast iron wheel features a solid cast iron core with a durable polyurethane tread, offering excellent load support, high abrasion resistance and smooth rolling. The 50 mm tread width and 92 Shore A hardness deliver a tough, resilient running surface that balances floor protection and load distribution. Designed for use across a temperature range of –40 °C to +60 °C, this castor performs reliably in a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor ideal for heavy-duty setups requiring controlled movement with braking support.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled rolling with braking when moving forward
-
550 kg load capacity per castor – Strong performance for heavy industrial use
-
Polyurethane on cast iron wheel – Durable, high abrasion resistance and excellent load support
-
125 mm wheel diameter – Smooth rolling under load
-
50 mm tread width – Great stability and floor contact
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –40 °C to +60 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 550 kg per castor
-
Max Load Capacity of 4 Castors: 1650 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Cast Iron
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +60 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 168 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and equipment frames
-
Manufacturing and assembly equipment
-
Material handling and transport systems
-
Applications requiring controlled rolling with enhanced braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of premium heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel castor with leading brake and polyurethane on cast iron wheel delivers excellent load capacity, controlled manoeuvrability and enhanced braking performance, making it a reliable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
550 |
|
|
125-5000-SUB-FR.pdf |
|
|
50 |
|
|
-40 min to +60 max |
|
|
92 shore A |
|
|
1650 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
168 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Cast Iron |
