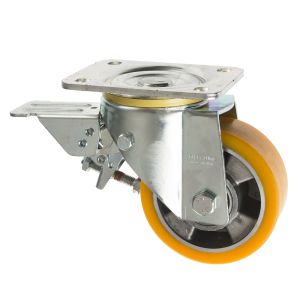

125mm Heavy Duty Leading Brake Castors with Polyurethane Wheel
SKU
125-5000-PAL/FR
This 125 mm heavy-duty swivel castor with leading brake combines robust load capacity,
In stock
£65.26
£54.38
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with leading brake combines robust load capacity, controlled manoeuvrability and enhanced braking performance for demanding industrial applications. The leading brake engages as the wheel rolls forward, helping to moderate movement and stabilise loads — a great choice where controlled deceleration is needed without sacrificing manoeuvrability.
With a 500 kg load capacity per castor, this model is well suited to industrial trolleys, machinery bases, material-handling platforms and workshop carts operating under significant load. The ball journal swivel bearing delivers smooth, reliable rotation under load, contributing to dependable performance and long service life in tough environments.
The polyurethane on aluminium wheel features a lightweight aluminium core with a high-performance polyurethane tread, providing excellent load support, floor protection and vibration cushioning. The 50 mm tread width and 92 Shore A hardness create a resilient running surface that balances traction, durability and quieter rolling. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor a dependable choice for heavy-duty applications that demand controlled movement with braking support.
Key Features
-
Heavy-duty swivel castor with leading brake – Moderate forward rolling with brake engagement
-
500 kg load capacity per castor – Strong support for industrial use
-
Polyurethane on aluminium wheel – Durable, floor-friendly tread
-
125 mm wheel diameter – Smooth rolling under load
-
50 mm tread width – Enhanced stability and contact
-
Ball journal swivel bearing – Reliable, smooth rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 500 kg per castor
-
Max Load Capacity of 4 Castors: 1500 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 168 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling and transport systems
-
Manufacturing and assembly equipment
-
Applications requiring controlled forward braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel castor with leading brake and polyurethane on aluminium wheel delivers excellent load capacity, controlled manoeuvrability and enhanced braking performance, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
500 |
|
|
125-5000-PAL-FR.pdf |
|
|
50 |
|
|
-20 min to +60 max |
|
|
92 shore A |
|
|
1500 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
168 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Aluminium |
