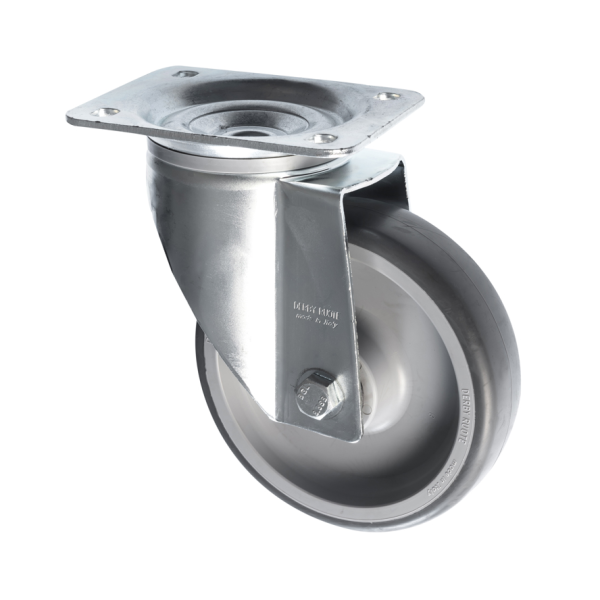

125mm Thermoplastic Rubber Castors
SKU
125-3360-MGR
This 125 mm swivel castor with thermoplastic rubber wheel is designed for smooth manoeuvrability and reliable load support in light- to... Read Full Description
In stock
£12.34
£10.28
- Price
- 1 + £12.34 £10.28
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm swivel castor with thermoplastic rubber wheel is designed for smooth manoeuvrability and reliable load support in light- to medium-duty commercial and industrial environments. The swivel action allows easy directional changes, making it ideal for trolleys, handling carts, mobile workstations and equipment that require controlled movement without braking.
With a load capacity of 150 kg per castor, this model delivers dependable performance for a variety of uses. The roller bearing ensures smooth, low-resistance rolling under load and helps reduce wear and friction during regular use. A maximum combined load capacity of 450 kg across four castors provides confident support for larger platforms and heavier equipment.
The thermoplastic rubber wheel offers quiet operation, effective shock absorption and excellent floor protection with non-marking tread. Featuring a tread hardness of 88 Shore A and an operating temperature range of –20 °C to +60 °C, this castor performs reliably across many indoor conditions. The 125 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 155 mm total castor height maintains stability without raising overall equipment height unnecessarily. A secure top plate fixing ensures straightforward installation.
Key Features
-
Swivel castor (non-braked) – Smooth manoeuvrability and easy directional control
-
Top plate fixing – Strong and stable mounting
-
125 mm wheel diameter – Balanced rolling performance and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey thermoplastic rubber wheel – Quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20 °C to +60 °C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 155 mm
-
Swivel Radius: 103 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Medium-duty industrial and workshop trolleys
-
Mobile workstations and benches
-
Handling carts and storage platforms
-
Retail, office and warehouse units requiring smooth movement
-
Indoor environments where quiet, controlled rolling is important
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and reliable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial, industrial and workplace use.
This 125 mm swivel castor with thermoplastic rubber wheel delivers reliable manoeuvrability, quiet operation and robust load support — making it a practical solution for a wide range of mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
TSZ7 MGR 125/30 P2 |
|
|
125-3360-MGR.pdf |
|
|
40 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
450 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
103 |
|
|
155 |
|
|
Grey |
|
|
125 |
|
|
Rubber on Polypropylene |
