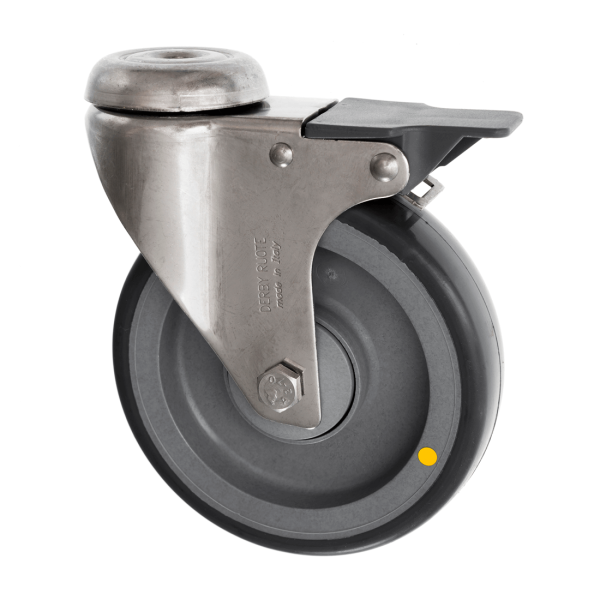

150mm Stainless Steel Braked Castor with Electro Conductive Wheel
SKU
SSL-150-ASR/SWB/BH12
This 150 mm stainless steel swivel bolt hole castor with brake is designed for controlled... Read Full Description
In stock
£37.44
£31.20
- Price
- 1 + £37.44 £31.20
CAD Request
Frequently bought together
Alternative Products
Description
This 150 mm stainless steel swivel bolt hole castor with brake is designed for controlled manoeuvrability, compact central mounting, and electrostatic discharge (ESD) protection in sensitive working environments. The bolt hole fixing allows fast, space-efficient installation, while the integrated brake ensures secure positioning when equipment must remain stationary.
Fitted with a 150 mm grey electro-conductive rubber wheel, this castor enables safe dissipation of static electricity while delivering quiet rolling, excellent grip, and effective floor protection. The A85 hardness tread provides a durable yet cushioned rolling surface, ideal for smooth indoor floors.
With a 100 kg load capacity per castor and a ball journal bearing, this model offers smooth rolling performance, low rolling resistance, and reliable manoeuvrability. The 30 mm tread width, 188 mm total height, and 123 mm swivel radius ensure stable handling with dependable braking performance.
Key Features
-
150 mm electro-conductive rubber wheel — ESD-safe operation with quiet rolling
-
Integrated brake — secure locking for safety and stability
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Ball journal bearing — smooth, low-resistance movement
-
Stainless steel housing — corrosion-resistant and durable
-
100 kg load capacity per castor — suitable for light to medium-duty use
-
A85 tread hardness — balanced grip and shock absorption
-
–20 °C to +60 °C operating range — suitable for indoor environments
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Ball Journal
-
Load Capacity: 100 kg
-
Max Load on 4 Castors: 300 kg
-
Wheel Diameter: 150 mm
-
Tread Width: 30 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 188 mm
-
Swivel Radius: 123 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 HPC 150/30 F0-12 BP
Applications
Ideal for use in:
-
ESD-sensitive environments
-
Electronics assembly and testing areas
-
Medical and laboratory equipment
-
Light to medium-duty trolleys and mobile units
-
Applications requiring static dissipation, compact mounting and braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors engineered for reliability, safety and smooth performance. This 150 mm electro-conductive swivel braked bolt hole castor delivers effective static control, quiet operation, and secure braking, making it a dependable solution for sensitive industrial and commercial environments.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Ball Journal |
|
|
100 |
|
|
FSX7 HPC 150/30 F0-12 BP |
|
|
SSL-150-ASR-SWB-BH12.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
300 |
|
|
123 |
|
|
188 |
|
|
Grey |
|
|
150 |
|
|
Electrically Conductive Rubber |
