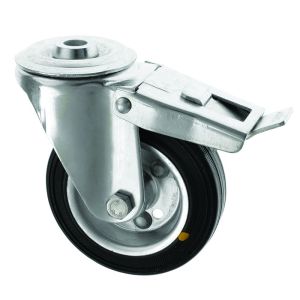

160mm Swivel Bolt Hole Braked Castor Anti Static Rubber Wheel
SKU
160-4000-ASR/SWB
This 160mm swivel braked bolt hole castor with an anti-static rubber wheel is designed for applications requiring Read Full Description
In stock
£60.68
£50.57
- Price
- 1 + £60.68 £50.57
CAD Request
Frequently bought together
Alternative Products
Description
This 160mm swivel braked bolt hole castor with an anti-static rubber wheel is designed for applications requiring controlled manoeuvrability, secure braking and electrostatic discharge (ESD) protection. The electrically conductive rubber tread safely dissipates static electricity, helping protect sensitive electronics and components in environments such as electronics manufacturing, laboratories, cleanrooms and ESD-controlled workspaces.
The swivel action allows smooth and responsive movement in all directions, while the integrated brake locks both the wheel and swivel head to prevent unwanted movement once positioned. The bolt hole fixing ensures a robust and secure attachment to equipment or frames where space or design doesn’t allow for a plate or stem fitting. A roller bearing delivers smooth rolling performance and dependable operation under load.
With a 135kg load capacity per castor, this model is ideal for medium-duty trolleys, mobile workstations and equipment carts where static control and secure positioning are important. The A80 rubber tread helps reduce noise and vibration while offering excellent floor protection on smooth indoor floors.
Key Features
-
Load Capacity: 135kg
-
Wheel Diameter: 160mm
-
Castor Type: Swivel braked (bolt hole)
-
Wheel Material: Electrically conductive rubber (anti-static)
-
Bearing Type: Roller bearing
-
Hardness: A80
-
Temperature Range: -20°C to +60°C
-
Wheel Colour: Black
-
Mounting: Bolt hole fixing (12mm)
Applications
Suitable for:
-
ESD-sensitive environments
-
Electronics manufacturing and assembly
-
Laboratories and cleanrooms
-
Medium-duty trolleys and workstations
-
Equipment requiring secure braking and static dissipation
Why Choose Ross Handling
Ross Handling supplies castors selected for reliable performance, consistent quality and long service life. This anti-static swivel braked bolt hole castor is a dependable choice where controlled manoeuvrability, secure braking and safe static dissipation are required — helping ensure controlled and reliable operation in sensitive working environments. If you’d like, I can also provide short meta-only CMS summaries for this anti-static bolt hole range.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Roller |
|
|
135 |
|
|
160-4000-ASR-SWB.pdf |
|
|
24 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A80 |
|
|
405 |
|
|
167 |
|
|
195 |
|
|
Black |
|
|
160 |
|
|
Electrically Conductive Rubber |
