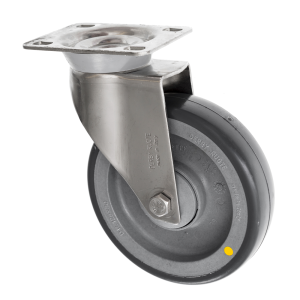

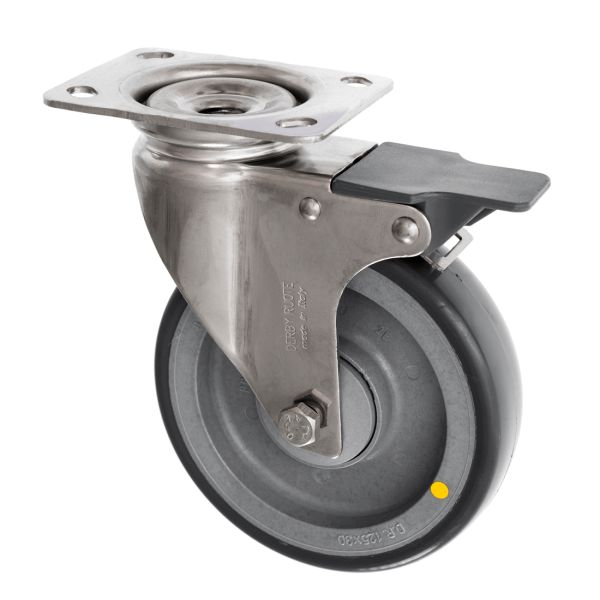

150mm Swivel Stainless Steel Braked Castor Antistatic Rubber Wheel
SKU
SSL-150-ASR/SWB
This stainless-steel swivel castor with integrated brake is engineered for smooth, electrostatic-safe... Read Full Description
In stock
£42.04
£35.03
- Price
- 1 + £42.04 £35.03
CAD Request
Frequently bought together
Alternative Products
Description
This stainless-steel swivel castor with integrated brake is engineered for smooth, electrostatic-safe rolling, controlled stopping, and corrosion resistance in light-to-medium-duty environments. Fitted with a 150 mm electrically conductive rubber wheel, it safely dissipates static electricity while providing quiet, cushioned movement — ideal for electronics assembly areas, laboratories, clean-rooms, medical facilities and commercial settings where static control and reliable braking are essential.
With a 100 kg load capacity and roller bearing, this castor delivers efficient, low-friction rotation and dependable swivel performance under load. The A85 tread hardness provides a balanced combination of grip and wear resistance, while the 30 mm tread width and 188 mm total height ensure stable, consistent movement. The 123 mm swivel radius offers smooth manoeuvrability with good clearance.
Constructed with a stainless-steel housing and robust top plate, this castor also delivers excellent corrosion resistance, making it suitable for hygienic, wash-down or damp environments where durability and static safety are critical.
Key Features
-
Electrically conductive rubber wheel — ESD safe for static-sensitive environments
-
Integrated brake — secure stopping and stable positioning
-
Stainless-steel housing — corrosion-resistant, ideal for hygienic or wash-down environments
-
100 kg load capacity — suitable for light-to-medium duty equipment
-
Roller bearing — smooth, low-friction rotation
-
A85 tread hardness — stable grip with resilient performance
-
30 mm tread width — stable rolling footprint
-
–20 °C to +60 °C operating range — versatile for typical indoor applications
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 100 kg
-
Max Load on 4 Castors: 300 kg
-
Wheel Diameter: 150 mm
-
Tread Width: 30 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 188 mm
-
Swivel Radius: 123 mm
-
Plate Length: 90 mm
-
Plate Width: 70 mm
-
Hole Centres (Length): 70 mm
-
Hole Centres (Width): 50 mm
-
Hole Diameter: 8 mm
-
Manufacturer Part Number: FSX7 HPC 150/30 P1 BP
-
Technical File: SFL-150-ASR-SWB.pdf
Applications
Ideal for use in:
-
Electronics assembly, ESD-protected zones and testing labs
-
Medical, laboratory and clean-room environments
-
Commercial equipment and service carts in static-sensitive areas
-
Retail and industrial spaces requiring static control and floor protection
-
Hygienic or wash-down installations where corrosion-resistant castors with secure braking are essential
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for smooth mobility, electrostatic safety and long-term reliability. This 150 mm swivel braked castor with an antistatic rubber wheel offers ESD-safe performance, secure brake control, quiet rolling, and corrosion-resistant construction, making it a dependable choice for static-critical, hygienic and indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 |
|
|
FSX7 HPC 150/30 P1 BP |
|
|
SSL-150-ASR-SWB.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
A85 |
|
|
300 |
|
|
90 |
|
|
70 |
|
|
70 |
|
|
50 |
|
|
8 |
|
|
123 |
|
|
188 |
|
|
Grey |
|
|
150 |
|
|
Electrically Conductive Rubber |
