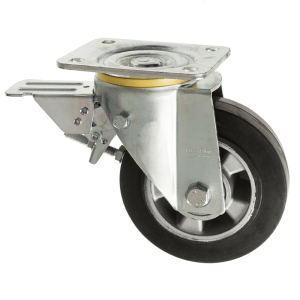

160mm Heavy Duty Rubber Castor Wheel with Leading Brake
SKU
160-5000-HRT/FR
This 160 mm heavy-duty swivel castor with leading brake is engineered for industrial applications where Read Full Description
In stock
£91.92
£76.60
- Price
- 1 + £91.92 £76.60
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel castor with leading brake is engineered for industrial applications where high load capacity, controlled manoeuvrability and enhanced braking control during rolling are required. The leading brake mechanism engages when the wheel rotates forward, helping to moderate movement and stabilise loads — especially useful when controlling heavy carts or equipment on ramps or uneven surfaces.
With a load capacity of 400 kg per castor, this model is ideal for industrial trolleys, machinery bases, manufacturing frames and handling equipment that demand both mobility and braking reliability. The ball journal swivel bearing provides smooth, controlled rotation under load, giving dependable performance and long service life in demanding environments.
The rubber on aluminium wheel combines a robust aluminium core with a shock-absorbing rubber tread, offering excellent load support while helping to reduce vibration and protect floor surfaces. The 40 mm tread width and 75 Shore A hardness provide a balanced profile of grip, durability and quiet operation. Designed for use within a temperature range of –20°C to +85°C, this castor delivers consistent performance across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor suitable for heavy-duty installations where both manoeuvrability and braking control are essential.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled rolling with enhanced braking
-
400 kg load capacity per castor – Designed for demanding industrial use
-
Rubber on aluminium wheel – Strong core with shock absorption
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
40 mm tread width – Improved stability and load distribution
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20°C to +85°C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 400 kg per castor
-
Max Load Capacity of 4 Castors: 1200 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Aluminium
-
Wheel Colour: Black
-
Tread Hardness: 75 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20°C to +85°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 170 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling and transport systems
-
Applications requiring controlled rolling and enhanced braking reliability
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors chosen for strength, durability and dependable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 160 mm heavy-duty swivel castor with leading brake and rubber on aluminium wheel delivers high load capacity, controlled movement and reliable braking performance, making it a dependable solution for demanding industrial handling applications
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
160-5000-HRT-FR.pdf |
|
|
40 |
|
|
-20 min to +85 max |
|
|
75 shore A |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
170 |
|
|
200 |
|
|
Black |
|
|
160 |
|
|
Rubber on Aluminium |
