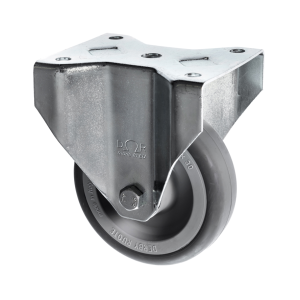

160mm Thermoplastic Rubber Wheel Fixed Castors
SKU
160-3368-MGR
This 160 mm fixed castor with thermoplastic rubber wheel is designed for
In stock
£24.01
£20.01
- Price
- 1 + £24.01 £20.01
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm fixed castor with thermoplastic rubber wheel is designed for medium-duty handling applications where straight-line stability, smooth rolling and increased load capacity are required. The fixed housing keeps equipment tracking in one direction, making it ideal for trolleys and mobile frames that require controlled movement.
With a load capacity of 200 kg per castor, this model is well suited to industrial and commercial handling equipment. The roller bearing construction provides smooth, consistent rolling under load while helping to reduce resistance and wear during regular use.
The grey thermoplastic rubber wheel features a non-marking tread that protects floor surfaces, absorbs vibration and runs quietly. With a tread hardness of 88 Shore A and an operating temperature range of –20°C to +60°C, this castor performs reliably in a wide range of indoor environments. The 160 mm wheel diameter improves rolling efficiency over joints and uneven floors, while the 200 mm overall height provides strong support without excessive lift. A heavy-duty top plate fixing ensures secure and stable installation.
Key Features
-
Fixed castor – Straight-line movement and stable tracking
-
Top plate fixing – Strong and secure mounting
-
160 mm wheel diameter – Improved rolling over uneven surfaces
-
200 kg load capacity per castor – Suitable for medium-duty use
-
Grey thermoplastic rubber wheel – Non-marking, quiet operation
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20°C to +60°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20°C to +60°C
-
Total Castor Height: 200 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial handling trolleys
-
Workshop carts and benches
-
Mobile frames and equipment bases
-
Commercial and industrial environments
-
Indoor applications requiring stable straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels built for strength, durability and consistent performance. All products are chosen to meet the practical demands of commercial and industrial users.
This 160 mm fixed castor with thermoplastic rubber wheel delivers high load capacity, smooth rolling performance and floor protection, making it a dependable choice for medium-duty handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
200 |
|
|
TSZ7 MGR 160/40 P3 FA |
|
|
160-3368-MGR.pdf |
|
|
40 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
600 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
200 |
|
|
Grey |
|
|
160 |
|
|
Rubber on Polypropylene |
