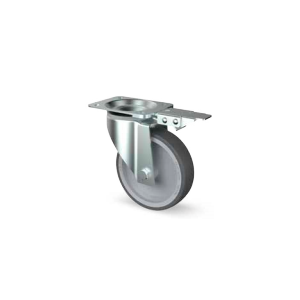

200mm Electro Conductive Castors Directional Lock
SKU
200-3360-HPP/D
This 200mm electro-conductive castor with directional lock is engineered for applications where Read Full Description
In stock
£73.85
£61.54
- Price
- 1 + £73.85 £61.54
CAD Request
Frequently bought together
Alternative Products
Description
This 200mm electro-conductive castor with directional lock is engineered for applications where controlled straight-line movement and static charge dissipation are essential. The electrically conductive rubber tread safely channels static electricity away from the load, making this castor ideal for electronics manufacturing, cleanrooms, laboratories and other ESD-sensitive environments where static needs to be actively managed.
The directional lock feature allows the castor to track in a fixed forward direction when engaged, providing stable, predictable movement and reducing unwanted lateral drift — perfect for guided carts, long runs or equipment that must maintain alignment. A ball journal bearing ensures smooth rolling performance under load, while the fixed tracking orientation enhances reliability and control.
Fitted with a polyurethane tyre bonded to a cast iron core, this castor delivers robust load support, excellent wear resistance and floor protection, all with reduced operational noise. With a 400kg load capacity per castor (1200kg for a set of four), this model is well suited to medium to heavy-duty trolleys, mobile workstations and industrial platforms requiring both static control and straight tracking performance.
Key Features
-
Load Capacity: 400kg per castor / 1200kg per 4
-
Wheel Diameter: 200mm
-
Castor Type: Fixed with directional lock
-
Wheel Material: Electrically conductive polyurethane on cast iron
-
Bearing Type: Ball journal bearing
-
Tread Hardness: 95 Shore A
-
Temperature Range: -40°C to +80°C
-
Wheel Colour: Grey
-
Mounting: Top plate fixing
Applications
Ideal for:
-
ESD-sensitive industrial environments
-
Electronics manufacturing and assembly
-
Cleanrooms and laboratories
-
Guided trolleys and straight-tracking equipment
-
Workstations and platforms requiring alignment control
The directional lock helps ensure controlled, straight movement, while the electro-conductive tread aids in static charge management.
Why Choose Ross Handling
Ross Handling supplies castors selected for industrial reliability, effective ESD control and consistent performance. This electro-conductive castor with directional lock offers a dependable solution where both static dissipation and straight-line tracking are required — making it an excellent choice for equipment and systems in demanding, sensitive environments.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
200-3360-HPP-D.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
95 shore A |
|
|
1200 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
155 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Electrically Conductive Rubber |
