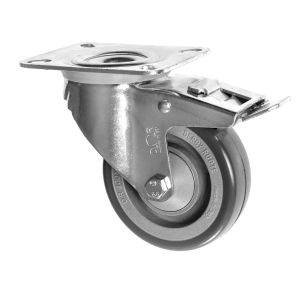

Electro Conductive Castors 200mm Polyurethane Wheel
SKU
200-3360-HPP
This 200mm electro-conductive castor is designed to offer effective static charge dissipation and smooth... Read Full Description
In stock
£72.88
£60.73
- Price
- 1 + £72.88 £60.73
CAD Request
Frequently bought together
Alternative Products
Description
This 200mm electro-conductive castor is designed to offer effective static charge dissipation and smooth manoeuvrability for mobile equipment used in electrostatic-sensitive environments. The electrically conductive rubber tread safely channels static electricity away, making it ideal for electronics manufacturing, cleanrooms, laboratories and controlled industrial settings where electrostatic discharge (ESD) control is essential.
Fitted with a polyurethane tyre bonded to a cast iron core, the wheel delivers strong load support while helping protect floor surfaces and minimise noise. The ball journal bearing ensures smooth rolling performance under load, and the swivel design allows easy movement and direction changes for mobile equipment.
With a 400kg load capacity per castor (1200kg for a set of four), this model is well suited to medium to heavy-duty trolleys, workstations, equipment carts and industrial platforms that require both load support and ESD protection. The 95 Shore A tread hardness balances wear resistance with good rolling comfort.
Key Features
-
Load Capacity: 400kg per castor / 1200kg per 4
-
Wheel Diameter: 200mm
-
Castor Type: Swivel
-
Wheel Material: Electrically conductive polyurethane on cast iron
-
Bearing Type: Ball journal bearing
-
Tread Hardness: 95 Shore A
-
Temperature Range: -40°C to +80°C
-
Wheel Colour: Grey
-
Mounting: Top plate fixing
Applications
Ideal for:
-
ESD-sensitive environments
-
Electronics and electrical assembly
-
Cleanrooms and laboratories
-
Mobile workstations and large equipment carts
-
Industrial platforms and heavy mobile units
The electro-conductive tread helps mitigate static build-up, protecting both personnel and sensitive electronics.
Why Choose Ross Handling
Ross Handling supplies castors selected for industrial reliability, effective ESD control and consistent performance. This electro-conductive swivel castor combines static dissipation with smooth manoeuvrability and robust construction, making it an excellent choice for environments where both movement and electrostatic safety are critical.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
TSZ7 HPP 200/50 P3 7012 |
|
|
200-3360-HPP.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
95 shore A |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
155 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Electrically Conductive Rubber |
