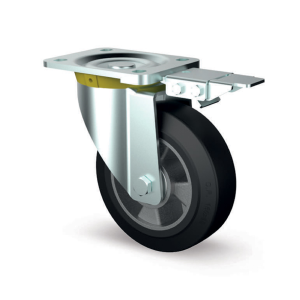

200mm Heavy Duty Rubber Castor Wheel with Directional Lock
SKU
200-5000-HRT/D
This 200 mm heavy-duty swivel castor with directional lock is designed for high-load industrial... Read Full Description
In stock
£103.36
£86.13
- Price
- 1 + £103.36 £86.13
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm heavy-duty swivel castor with directional lock is designed for high-load industrial applications where maximum load capacity, controlled manoeuvrability and the ability to maintain straight-line travel are critical. The directional lock mechanism allows the swivel function to be locked when required, enabling equipment to track straight over longer distances or through confined working areas.
With a load capacity of 500 kg per castor, this model is ideally suited to heavy industrial trolleys, machinery bases, fabrication frames and material handling systems operating under extreme loads. The ball journal swivel bearing provides smooth, controlled rotation under load, ensuring reliable performance and long service life in demanding environments.
The rubber on aluminium wheel features a robust aluminium core combined with a shock-absorbing rubber tread, offering excellent load support while helping to reduce vibration and protect floor surfaces. The 40 mm tread width and 75 Shore A hardness provide a stable, durable rolling surface with good grip and quiet operation. Designed for use within a temperature range of –20°C to +85°C, this castor performs consistently across a wide range of indoor industrial applications.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor suitable for the heaviest directional-lock installations where both flexibility and straight-line control are required.
Key Features
-
Heavy-duty swivel castor with directional lock – Switch between swivel and straight-line movement
-
500 kg load capacity per castor – Designed for extreme industrial loads
-
Rubber on aluminium wheel – Strong core with shock absorption
-
200 mm wheel diameter – Smooth rolling under very heavy loads
-
40 mm tread width – Improved stability and load distribution
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20°C to +85°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 500 kg per castor
-
Max Load Capacity of 4 Castors: 1500 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Aluminium
-
Wheel Colour: Black
-
Tread Hardness: 75 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20°C to +85°C
-
Total Castor Height: 240 mm
-
Swivel Radius: 160 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and platforms
-
Machinery bases and fabrication frames
-
Manufacturing and assembly equipment
-
Material handling and transport systems
-
Applications requiring straight-line tracking under extreme load
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors chosen for strength, durability and dependable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 200 mm heavy-duty swivel castor with directional lock and rubber on aluminium wheel delivers exceptional load capacity, controlled movement and reliable straight-line tracking, making it a dependable solution for the most demanding industrial handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
500 |
|
|
200-5000-HRT-D.pdf |
|
|
40 |
|
|
-20 min to +85 max |
|
|
75 shore A |
|
|
1500 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
160 |
|
|
240 |
|
|
Black |
|
|
200 |
|
|
Rubber on Aluminium |
