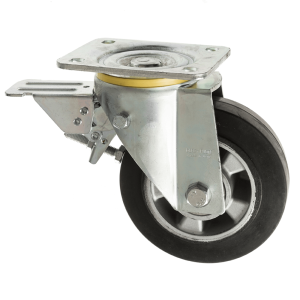

8" Heavy Duty Leading Brake Castors - 200mm Rubber Castor Wheel
SKU
200-5000-HRT/FR
This 200 mm heavy-duty swivel castor with leading brake is engineered for high-load industrial... Read Full Description
In stock
£100.66
£83.88
- Price
- 1 + £100.66 £83.88
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm heavy-duty swivel castor with leading brake is engineered for high-load industrial applications where controlled manoeuvrability, enhanced braking control and reliable performance under pressure are essential. The leading brake mechanism engages when the wheel moves forward, helping to moderate rolling speed and improve stability — especially useful on slight gradients or when moving heavy loads.
With a load capacity of 500 kg per castor, this model is ideally suited to heavy industrial trolleys, machinery bases, material handling frames and transport units that require both mobility and reliable braking performance. The ball journal swivel bearing provides smooth, controlled rotation under load, delivering dependable movement and long service life in demanding environments.
The rubber on aluminium wheel combines a strong aluminium core with a shock-absorbing rubber tread, offering excellent load support while helping reduce vibration and protect floor surfaces. The 40 mm tread width and 75 Shore A hardness deliver a balanced combination of grip, durability and quiet rolling. Designed for use within a temperature range of –20 °C to +85 °C, this castor performs consistently across a wide range of indoor industrial environments.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor suitable for heavy-duty installations where both flexibility and braking control are required.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled rolling with enhanced braking
-
500 kg load capacity per castor – Strong performance for heavy industrial use
-
Rubber on aluminium wheel – Strong core with shock absorption
-
200 mm wheel diameter – Smooth rolling under heavy loads
-
40 mm tread width – Improved stability and load distribution
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20 °C to +85 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 500 kg per castor
-
Max Load Capacity of 4 Castors: 1500 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Aluminium
-
Wheel Colour: Black
-
Tread Hardness: 75 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +85 °C
-
Total Castor Height: 240 mm
-
Swivel Radius: 180 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling and transport systems
-
Applications requiring controlled rolling with added braking reliability
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors chosen for strength, reliability and dependable performance in industrial settings. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 200 mm heavy-duty swivel castor with leading brake and rubber on aluminium wheel delivers exceptional load capacity, controlled movement and enhanced braking performance, making it a dependable solution for high-demand industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
500 |
|
|
200-5000-HRT-FR.pdf |
|
|
40 |
|
|
-20 min to +85 max |
|
|
75 shore A |
|
|
1500 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
180 |
|
|
240 |
|
|
Black |
|
|
200 |
|
|
Rubber on Aluminium |
