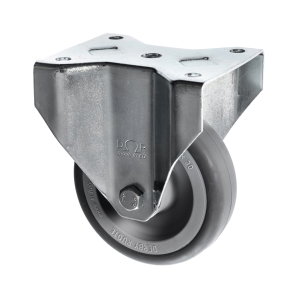

80mm Thermoplastic Rubber Wheel Fixed Castors
SKU
80-3368-MGR
This 80 mm fixed castor with thermoplastic rubber wheel is designed for applications that require straight-line movement with reliable load support and stable tracking. The fixed housing ensures... Read Full Description
In stock
£7.64
£6.37
- Price
- 1 + £7.64 £6.37
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm fixed castor with thermoplastic rubber wheel is designed for applications that require straight-line movement with reliable load support and stable tracking. The fixed housing ensures consistent directional control, making it ideal for trolleys, mobile equipment, workstations and handling units that do not require swivelling.
With a load capacity of 80 kg per castor, this model is well suited to light-duty and medium-duty industrial and commercial environments. The roller bearing construction provides smooth, low-resistance rolling under load, helping to minimise effort when moving equipment while also reducing wear during regular use. When fitted as a set of four castors, the maximum combined load capacity is 240 kg.
The thermoplastic rubber wheel delivers quiet, floor-friendly operation with good shock absorption and a non-marking tread. With a tread hardness of 88 Shore A and an operating temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor applications. The 80 mm wheel diameter offers a good balance of compact size and rolling efficiency, while the 108 mm total castor height maintains stability without significantly increasing overall equipment height. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – straight-line movement and stable tracking
-
Top plate fixing – secure and rigid mounting
-
80 mm wheel diameter – compact size with smooth rolling performance
-
80 kg load capacity per castor – suitable for light to medium duty use
-
Grey thermoplastic rubber wheel – quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – durable and shock absorbing
-
Roller bearing – smooth rolling under load
-
Operating temperature range: –20 °C to +60 °C
Specifications
Castor Type: Fixed, Top Plate
Bearing Type: Roller
Load Capacity: 80 kg
Max Load Capacity of 4 Castors: 240 kg
Wheel Diameter: 80 mm
Tread Width: 30 mm
Wheel Material: Rubber on Polypropylene
Wheel Colour: Grey
Tread Hardness: 88 Shore A
Temperature Range: –20 °C to +60 °C
Total Castor Height: 108 mm
Plate Length: 105 mm
Plate Width: 85 mm
Plate Hole Centres (Length): 80 mm
Plate Hole Centres (Width): 60 mm
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light to medium-duty trolleys
-
Mobile workstations and benches
-
Handling equipment and carts
-
Storage units and racks
-
Indoor environments requiring straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, reliability and consistent performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 80 mm fixed castor with thermoplastic rubber wheel offers smooth rolling, quiet operation and dependable load capacity, making it a practical solution for controlled, straight-line mobility.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
80 |
|
|
TSZ7 MGR 080/30 P2 FA |
|
|
80-3368-MGR.pdf |
|
|
30 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
240 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
108 |
|
|
Grey |
|
|
80 |
|
|
Rubber on Polypropylene |
