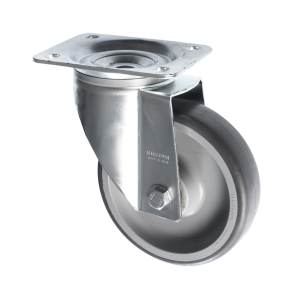

80mm Thermoplastic Rubber Castors
SKU
80-3360-MGR
This 80 mm swivel castor with thermoplastic rubber wheel is designed for smooth manoeuvrability and reliable load support in light-duty... Read Full Description
In stock
£9.36
£7.80
- Price
- 1 + £9.36 £7.80
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm swivel castor with thermoplastic rubber wheel is designed for smooth manoeuvrability and reliable load support in light-duty industrial and commercial applications. The swivel head allows easy directional changes, making it ideal for small trolleys, workshop equipment, display units and mobile fixtures that require controlled movement without braking.
With a load capacity of 80 kg per castor, this model delivers dependable performance under everyday use. The roller bearing ensures smooth rolling under load and helps reduce friction and wear for a longer service life. With a maximum combined load capacity of 240 kg across four castors, it supports compact platforms and lighter equipment with confidence.
The thermoplastic rubber wheel provides quiet operation, effective shock absorption and excellent floor protection with a non-marking tread. Featuring a tread hardness of 88 Shore A and an operating temperature range of –20°C to +60°C, this castor performs reliably across a wide range of indoor environments. The 80 mm wheel diameter balances compact design with efficient rolling performance, while the 108 mm total castor height maintains stability without significantly increasing overall equipment height. A secure top plate fixing ensures straightforward and robust installation.
Key Features
-
Swivel castor (non-braked) – Easy manoeuvrability and directional control
-
Top plate fixing – Stable and secure mounting
-
80 mm wheel diameter – Compact but effective rolling
-
80 kg load capacity per castor – Suitable for light-duty use
-
Grey thermoplastic rubber wheel – Quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20°C to +60°C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 80 kg per castor
-
Max Load Capacity of 4 Castors: 240 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 30 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20°C to +60°C
-
Total Castor Height: 108 mm
-
Swivel Radius: 84 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light-duty workshop and industrial trolleys
-
Mobile equipment and display units
-
Handling carts and small platforms
-
Retail, office and production environments requiring smooth movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial use.
This 80 mm swivel castor with thermoplastic rubber wheel delivers smooth rolling, quiet performance and reliable load support — making it an excellent choice for a wide range of light-duty mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
80 |
|
|
TSZ7 MGR 080/30 P2 |
|
|
80-3360-MGR.pdf |
|
|
30 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
240 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
84 |
|
|
108 |
|
|
Grey |
|
|
80 |
|
|
Rubber on Polypropylene |
