160mm Grey Rubber Industrial Castors with Directional Lock
SKU
160-3360-GVR/D
This 160 mm swivel castor with grey rubber wheel and directional lock is designed for medium-duty applications where smooth manoeuvrability and... Read Full Description
In stock
£44.57
£37.14
- Price
- 1 + £44.57 £37.14
CAD Request
Frequently bought together
Alternative Products
Description

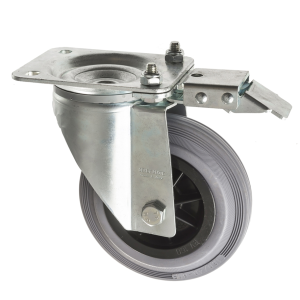

This 160 mm swivel castor with grey rubber wheel and directional lock is designed for medium-duty applications where smooth manoeuvrability and controlled straight-line movement are required. The swivel head facilitates easy directional changes, while the directional lock allows the castor to be fixed in a straight-ahead position, improving tracking and stability for longer runs or guided movement.
With a load capacity of 150 kg per castor, this model is suitable for a range of industrial and commercial uses. The roller bearing construction delivers smooth rolling performance under load and minimises friction and wear during regular use. With a maximum combined load capacity of 450 kg across four castors, it provides dependable support for larger platforms and equipment.
The rubber on polypropylene wheel delivers excellent shock absorption, quiet operation and good floor protection. Featuring a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide variety of indoor and light industrial conditions. The 160 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 200 mm total castor height provides increased ground clearance without compromising stability. A robust top plate fixing ensures secure and reliable installation.
Key Features
-
Swivel castor with directional lock – Smooth manoeuvrability with straight-line control
-
Top plate fixing – Secure and stable mounting
-
160 mm wheel diameter – Excellent rolling efficiency and obstacle clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 25 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 135 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Material handling equipment
-
Mobile workstations
-
Large equipment platforms
-
Warehousing and assembly line systems requiring directional stability
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels designed for durability, strength and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 160 mm swivel castor with grey rubber wheel and directional lock delivers smooth rolling performance, solid load support and enhanced directional control, making it an excellent solution for guided movement in industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
160-3360-GVR-D.pdf |
|
|
25 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
450 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
135 |
|
|
200 |
|
|
Grey |
|
|
160 |
|
|
Rubber on Polypropylene |
