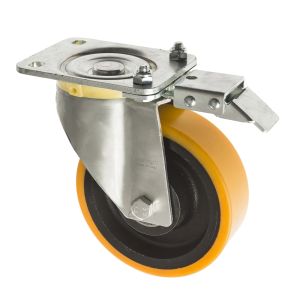

Heavy Duty Castors Directional Lock - 200mm Polyurethane Castor Wheel
SKU
200-5000-SUB/D
This 200 mm heavy-duty swivel castor with directional lock is engineered for industrial... Read Full Description
In stock
£95.04
£79.20
- Price
- 1 + £95.04 £79.20
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm heavy-duty swivel castor with directional lock is engineered for industrial applications where very high load capacity, controlled manoeuvrability and straight-line tracking when needed are essential. The directional lock lets you lock the swivel action, allowing equipment to track straight for longer moves or through narrow paths, while still offering full swivel mobility when unlocked.
With an 800 kg load capacity per castor, this model is suited to heavy industrial trolleys, machinery bases, material-handling platforms and production equipment operating under significant loads. The ball journal swivel bearing ensures smooth, controlled rotation under load, offering dependable performance and long service life in demanding environments.
The polyurethane on cast iron wheel combines a robust cast iron core with a high-performance polyurethane tread, delivering outstanding load support, abrasion resistance and smooth rolling performance. The 50 mm tread width and 92 Shore A hardness provide a resilient running surface that balances durability, floor protection and load distribution. Designed for use within a temperature range of –40 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial conditions.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor a reliable choice for heavy-duty operations requiring both mobility and controlled tracking.
Key Features
-
Heavy-duty swivel castor with directional lock – Switch between swivel movement and straight tracking
-
800 kg load capacity per castor – Exceptional support for heavy industrial use
-
Polyurethane on cast iron wheel – Durable, high abrasion resistance and strong load support
-
200 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Excellent stability and floor contact
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –40 °C to +60 °C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 800 kg per castor
-
Max Load Capacity of 4 Castors: 2400 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Cast Iron
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +60 °C
-
Total Castor Height: 240 mm
-
Swivel Radius: 160 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and platforms
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling systems
-
Applications requiring controlled tracking with high load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and reliable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 200 mm heavy-duty swivel castor with directional lock and polyurethane on cast iron wheel delivers excellent load capacity, controlled manoeuvrability and straight tracking control, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
800 |
|
|
200-5000-SUB-D.pdf |
|
|
50 |
|
|
-40 min to +60 max |
|
|
92 shore A |
|
|
2400 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
160 |
|
|
240 |
|
|
Yellow |
|
|
200 |
|
|
Polyurethane on Cast Iron |
