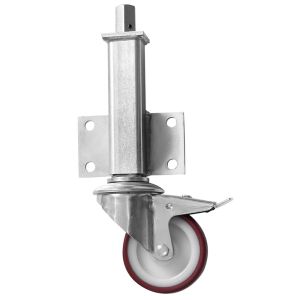

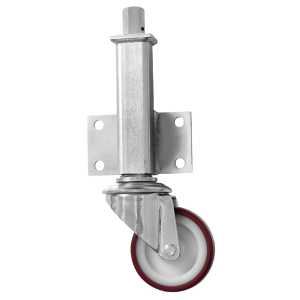

JA 100mm Medium Duty Jacking Castor with Brake Polyurethane Wheel 150kg Load


This medium duty jacking castor with a brake and a 100mm polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate ... Read More

In Stock
£121.06 (excl. VAT) Incl. VAT: £145.27
1+ £121.06 (excl. VAT) £145.27 7 £109.76 (excl. VAT) £131.71 12 £101.69 (excl. VAT) £122.03

With this product, you earn 146 loyalty point(s). 146 points = £7.30.


This medium duty jacking castor with a brake and a 100mm polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit. The foot operated brake will brake the castor swivel head and wheel.

Technical Details

Bearing Type Bearing Type Roller
Bolt Hole Size (mm) Bolt Hole Size (mm) 10
Colour Colour No
Jacking Unit Extension Height Max 76m 414
Jacking Unit Height From Plate Lower Bolt Hole 187
Load Capacity (kg) Load Capacity (kg) 150
Max Load Capacity for 2 Jacking Castors 150
Min Jacking Unit Extension Height 338
Operating Method 24mm Spanner
Plate Dimension Length (mm) Plate Dimension Length (mm) 130
Plate Dimension Width (mm) Plate Dimension Width (mm) 75
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 102
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 51
Plate Hole Diameter Plate Hole Diameter 11
Product Type Product Type Jacking Castors
Swivel Radius Swivel Radius 327
Thread Material Thread Material No
Total Castor Height Total Castor Height 128 + 76
Total Height to Plate Lower Bolt Hole 151
Tread Width (mm) Tread Width (mm) 30
Wheel Centre Wheel Centre White Polyamide
Wheel Colour Wheel Colour Maroon
Wheel Diameter(mm) Wheel Diameter(mm) 100
Wheel Material Wheel Material Polyurethane
