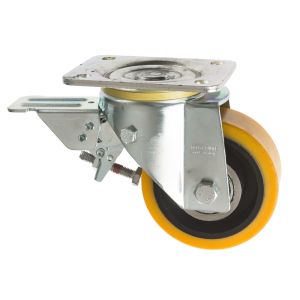

200mm Heavy Duty Castor with Brake Polyurethane Wheel 800kg
SKU
200-5000-SUB/FR
This 200 mm heavy-duty swivel castor with leading brake combines high load capacity,
In stock
£98.59
£82.16
- Price
- 1 + £98.59 £82.16
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm heavy-duty swivel castor with leading brake combines high load capacity, controlled manoeuvrability and enhanced braking performance for demanding industrial tasks. The leading brake mechanism engages when the wheel is rolling forward, helping to moderate movement and stabilise heavy loads, especially useful on slight gradients or in busy workshop environments.
With a load capacity of 800 kg per castor, this model is ideally suited to heavy industrial trolleys, machinery bases, material-handling platforms and production equipment subjected to substantial loads. The ball journal swivel bearing ensures smooth, dependable rotation under load, providing reliable performance and long service life in tough industrial conditions.
The polyurethane on cast iron wheel features a solid cast iron core with a high-performance polyurethane tread, offering excellent load support, high abrasion resistance and smooth rolling characteristics. The 50 mm tread width and 92 Shore A hardness provide a rugged running surface that balances durability, floor protection and load distribution. Designed for use within a temperature range of –40 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial applications.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor a dependable choice for heavy-duty setups requiring reliable braking and load control.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled rolling with braking when moving forward
-
800 kg load capacity per castor – Exceptional support for heavy industrial use
-
Polyurethane on cast iron wheel – Durable, high abrasion resistance and strong load support
-
200 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Enhanced stability and floor contact
-
Ball journal swivel bearing – Smooth, reliable rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –40 °C to +60 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 800 kg per castor
-
Max Load of 4 Castors: 2400 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Cast Iron
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +60 °C
-
Total Height: 240 mm
-
Swivel Radius: 180 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy industrial trolleys
-
Machinery bases and equipment frames
-
Material handling and transport systems
-
Manufacturing and assembly equipment
-
Applications requiring controlled rolling with enhanced braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in demanding industrial environments. Products are sourced to meet the practical needs of commercial, manufacturing and logistics users.
This 200 mm heavy-duty swivel castor with leading brake and polyurethane on cast iron wheel delivers excellent load capacity, controlled manoeuvrability and enhanced braking control, making it a dependable choice for the most demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
800 |
|
|
200-5000-SUB-FR.pdf |
|
|
50 |
|
|
-40 min to +60 max |
|
|
92 shore A |
|
|
2400 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
180 |
|
|
240 |
|
|
Yellow |
|
|
200 |
|
|
Polyurethane on Cast Iron |
