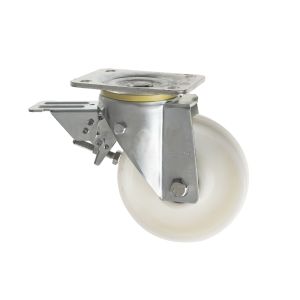

125mm Heavy Duty Leading Brake Castors White Nylon Wheel
SKU
125-5000-NYB/FR
This 125 mm heavy-duty swivel castor with leading brake and white nylon wheel is engineered for... Read Full Description
In stock
£71.02
£59.18
- Price
- 1 + £71.02 £59.18
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with leading brake and white nylon wheel is engineered for industrial environments where high load capacity, smooth manoeuvrability and controlled braking action are essential. The leading brake is designed to engage as the wheel rolls forward, helping to control momentum and stabilise heavy loads without compromising swivel movement — a smart choice for busy workshop floors, ramps or material-handling routes.
With a 700 kg load capacity per castor, this model delivers robust performance for heavy equipment, trolleys and plant items. The ball journal swivel bearing provides smooth, reliable rotation under load, contributing to consistent performance and long service life even under demanding use.
The white nylon wheel offers excellent wear resistance, low rolling resistance and good chemical resistance, making it suited to hard, smooth floors typical of industrial, warehouse or manufacturing settings. The 50 mm tread width and D75 tread hardness deliver a stable contact surface that supports heavy loads while helping to protect flooring. Designed for use within a temperature range of –40 °C to +80 °C, this castor performs reliably across a wide range of indoor conditions.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and effective load distribution on heavy equipment.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled forward braking when rolling
-
700 kg load capacity per castor – Strong support for industrial applications
-
White nylon wheel – Durable, low rolling resistance and floor-friendly
-
125 mm wheel diameter – Efficient rolling under heavy load
-
50 mm tread width – Excellent stability and surface contact
-
Ball journal swivel bearing – Smooth, dependable rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –40 °C to +80 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +80 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 168 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Ideal for use on:
-
Heavy-trolleys and industrial carts
-
Equipment bases and machine platforms
-
Material handling systems
-
Assembly line carts
-
Workshops, warehouses and factories requiring stable braking action
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial settings. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel castor with leading brake and white nylon wheel delivers excellent load support, controlled manoeuvrability and enhanced braking action, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
125-5000-NYB-FR.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
168 |
|
|
164 |
|
|
White |
|
|
125 |
|
|
Nylon |
