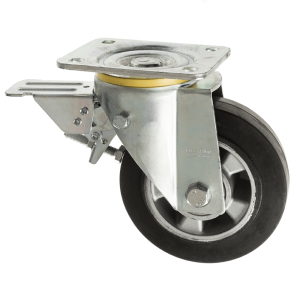

5" Heavy Duty Castors with Leading Brake & Rubber Wheel
SKU
125-5000-HRT/FR
This 125 mm heavy-duty swivel castor with leading brake is designed for industrial applications... Read Full Description
In stock
£69.70
£58.08
- Price
- 1 + £69.70 £58.08
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel castor with leading brake is designed for industrial applications where high load capacity, controlled manoeuvrability and improved braking safety during movement are required. The leading brake mechanism engages when the castor moves in a forward direction, helping to reduce rolling speed and stabilise equipment, particularly on slopes or during controlled handling.
With a load capacity of 300 kg per castor, this model is suitable for heavy industrial trolleys, machinery bases, manufacturing frames and handling equipment. The ball journal swivel bearing delivers smooth, controlled rotation under load, ensuring dependable performance and long service life in demanding environments.
The rubber on aluminium wheel combines a strong aluminium core with a shock-absorbing rubber tread, providing excellent load support while helping to reduce vibration and protect floor surfaces. The 40 mm tread width and 75 Shore A hardness offer a balanced combination of grip, durability and quiet rolling. Designed for operation within a temperature range of –20°C to +85°C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor ideal for heavy-duty installations where controlled braking and stability are essential.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled rolling and improved safety
-
300 kg load capacity per castor – Suitable for demanding industrial use
-
Rubber on aluminium wheel – Strong core with shock absorption
-
125 mm wheel diameter – Smooth rolling under load
-
40 mm tread width – Improved stability and load distribution
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20°C to +85°C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Aluminium
-
Wheel Colour: Black
-
Tread Hardness: 75 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20°C to +85°C
-
Total Castor Height: 164 mm
-
Swivel Radius: 168 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling systems
-
Applications requiring controlled rolling and added braking safety
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors chosen for strength, durability and dependable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 125 mm heavy-duty swivel castor with leading brake and rubber on aluminium wheel provides high load capacity, controlled movement and enhanced braking performance, making it a reliable solution for demanding industrial handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
300 |
|
|
125-5000-HRT-FR.pdf |
|
|
40 |
|
|
-20 min to +85 max |
|
|
75 shore A |
|
|
900 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
168 |
|
|
164 |
|
|
Black |
|
|
125 |
|
|
Rubber on Aluminium |
